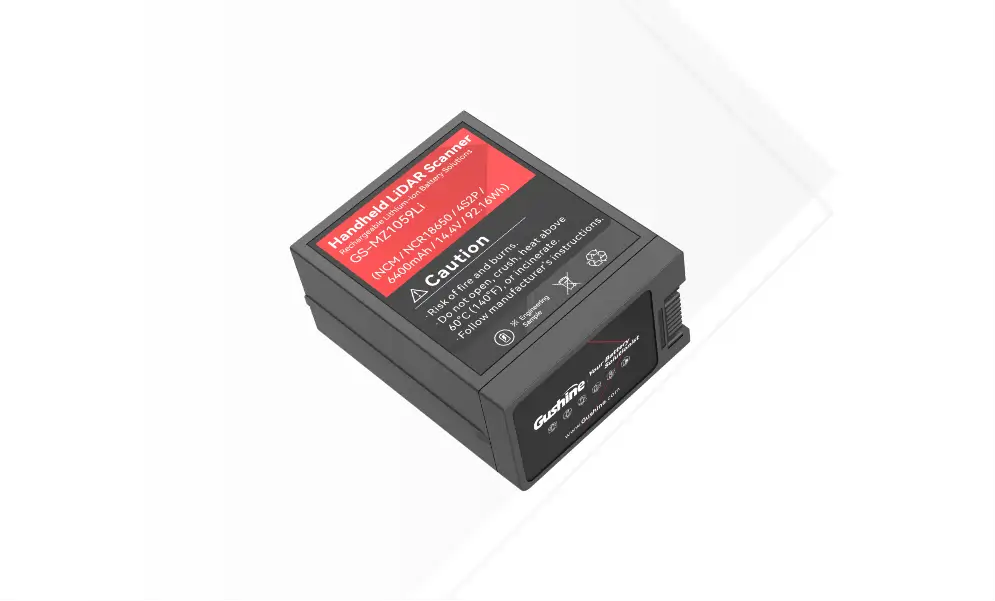

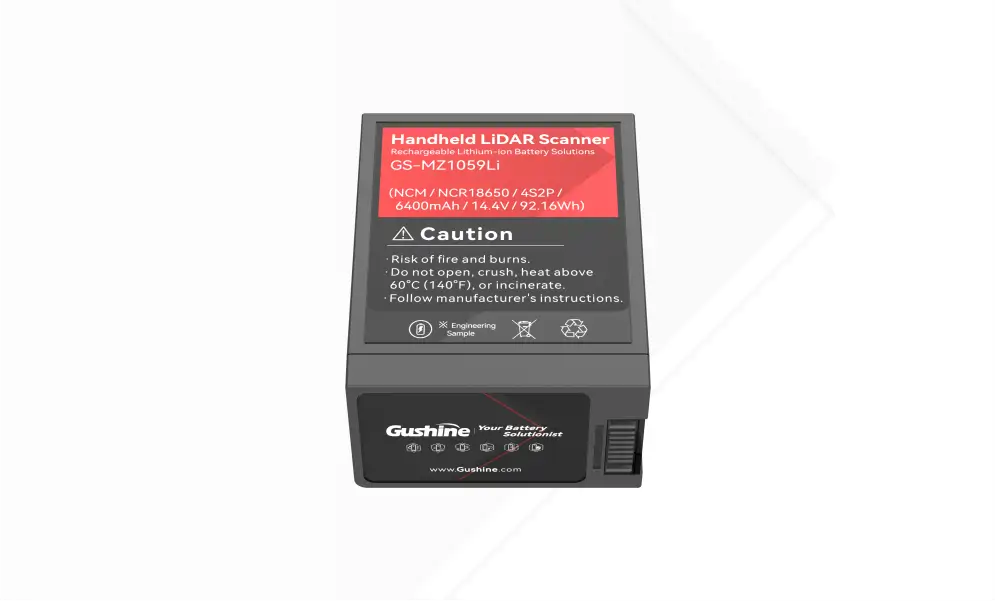

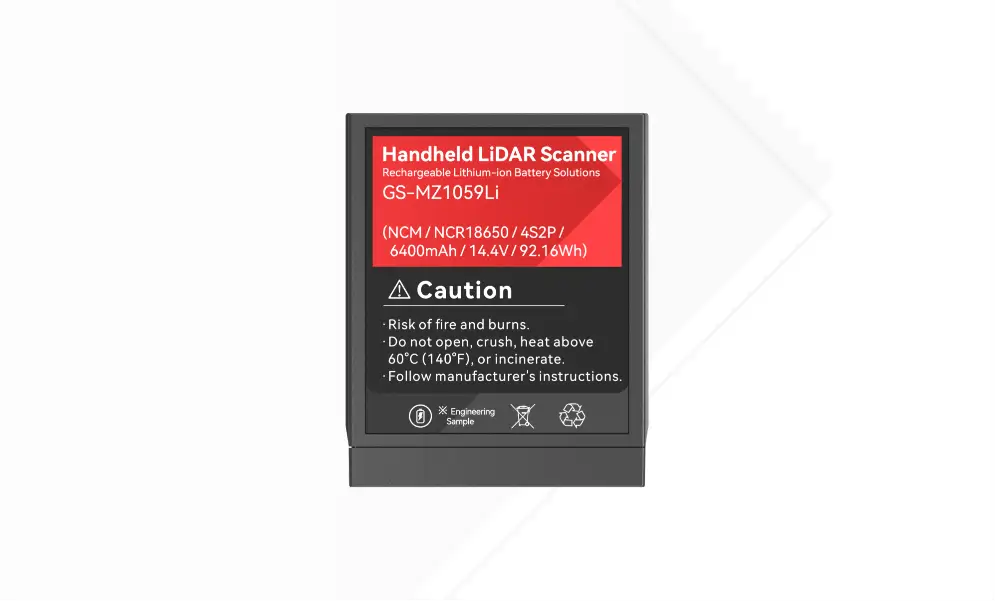

Handheld Laser Scanner_MZ1059Li
- Long Runtime & High Energy
- Stable High-Power Output
- Smart BMS Management
- Rugged Protection & Wide-Temperature Operation
Handheld Laser Scanner Battery Packs are designed for mobile applications such as surveying, engineering inspection, and 3D data acquisition. Combining high energy density, stable power output, smart BMS management, and rugged protection, they provide continuous and reliable power for laser scanning, data processing, and wireless communication.
| No. | Item | Parameter | Remarks | |
| 1 | Rated Capacity | Min.6400mAh | 0.2C Discharge at 25°C | |
| 2 | Nominal Voltage | 14.4V | ||
| 3 | Charge Limit Voltage | 16.8V | ||
| 4 | Maximum Charging Voltage | 16.8V±0.03V | ||
| 5 | Discharge Cut-off Voltage | 11V | ||
| 6 | Charging Method | CC-CV | ||
| 7 | Charging Current | Standard Charging Current | 1200 mA | 0.2C |
| Maximum Charging Current | 3000 mA | |||
| 8 | Recommended Discharge Current | 1000mA | -20℃-+60℃ | |
| 9 | Maximum Discharge Current | 5000 mA | -20℃-+45℃ | |
| 4000mA | +45℃-+60℃ | |||
| 10 | Maximum Pulse Discharge Current | 6000mA | ||
| 11 | Operating Temperature | Charging | 10°C~+45°C | Charging Voltage ≤ 16.4 V |
| Discharging | -20°C~+60°C | |||
| 12 | Storage Temperature | Less than 1 Month | -20°C~+50°C | Capacity Recovery ≥ 80% |
| Less than 3 Months | -20°C~+40°C | |||
| Less than 1 Year | -20°C~+20°C | |||
| 13 | Relative Humidity | 65±20% | ||
| 14 | Battery Internal Resistance | ≤ 300 mΩ | AC internal resistance measured at 1 kHz after standard charging. | |
| 15 | Battery Weight | 480g | About | |
| 16 | Battery Dimensions | Length | 92.0mm+0.1/0.35mm | |
| Width | 51.4mm+0.1/0.25mm | |||
| Thickness | 19.0mm+0.1/0.35mm | |||
High Energy Density & Long Runtime: Delivers higher capacity within a compact handheld form factor to support extended operation for laser scanning, data acquisition, and wireless communication.
Stable High-Power Output: Optimized for transient high-load components such as lasers, processors, and wireless modules, helping reduce voltage fluctuations and unexpected shutdowns.
Smart BMS & Communication Management: Supports SOC monitoring, battery status management, NTC temperature sensing, and communication functions for accurate battery level indication and seamless terminal coordination.
Rugged Protection & Wide-Temperature Operation: Combines vibration resistance, drop resistance, dust and water protection, and wide-temperature design to perform reliably in demanding environments such as outdoor surveying and engineering sites.
