The battery uses CC/CV charging with a standard charging current of 2 A and a maximum charging current of up to 5 A, reducing recharge time and improving continuous operating efficiency. The standard discharge current is 2 A, with a maximum continuous discharge current of 9 A and a maximum pulse discharge current of up to 30 A, meeting transient high-power demands during blade startup, hill climbing, turning, and heavy grass cutting.

Product Specifications & Configuration

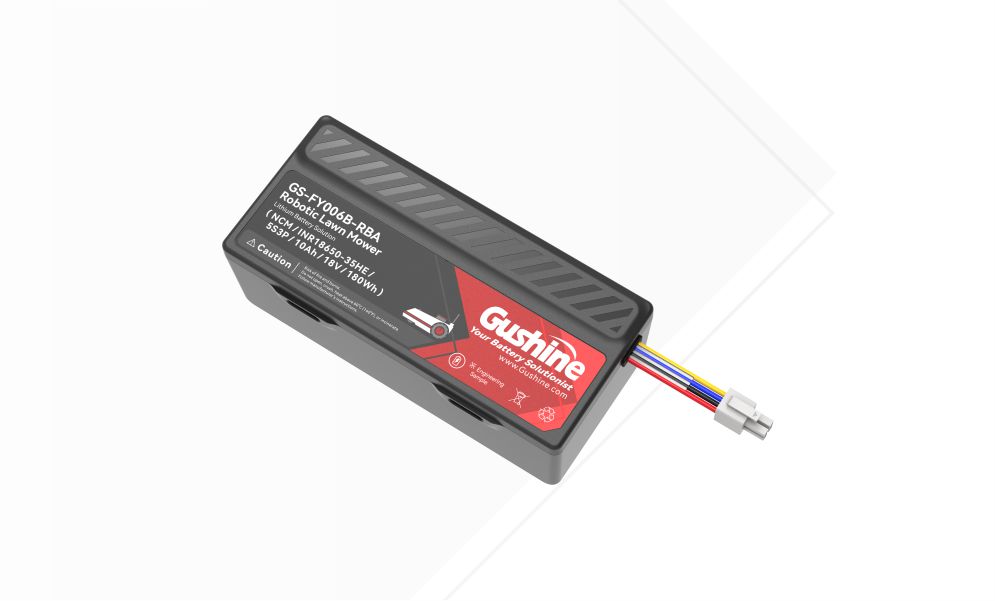

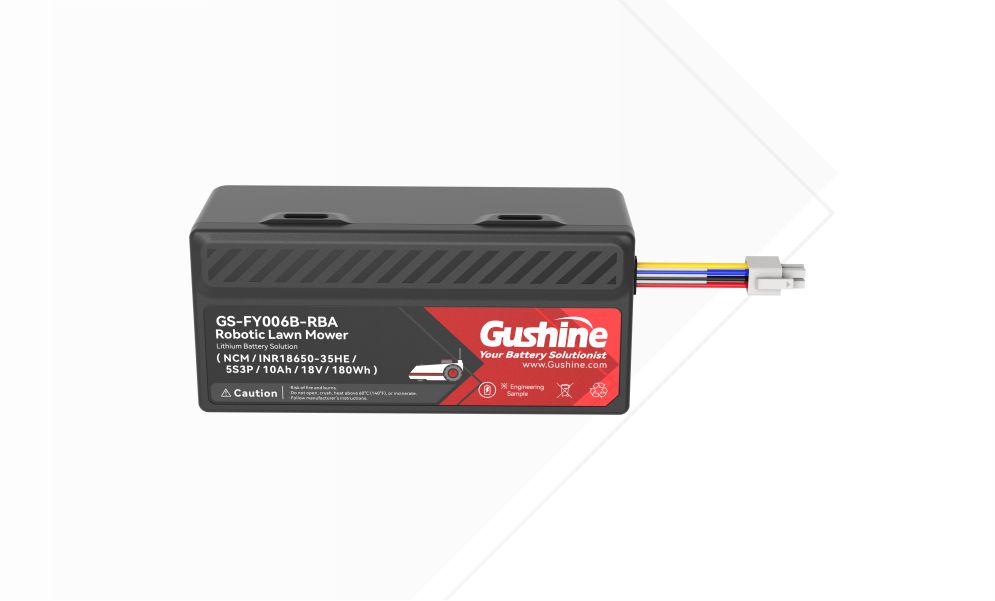

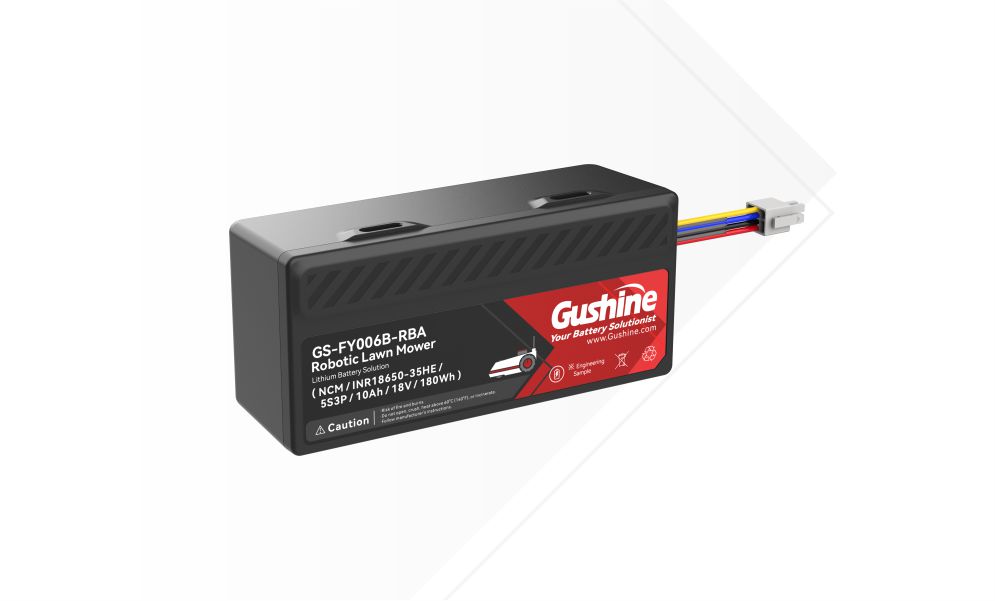

Battery Model: FY006B-RBA
Cell Type / Capacity: INR 18650-35E/3400mAh
Battery Configuration: The finished battery pack consists of a 2S1P cell configuration and a protection control circuit (PCM).

Basic Performance

No.	Item		Parameter	Remarks
1	Capacity		10000mAh	0.2C Discharge 25°C
2	Nominal Voltage		18V
3	Charge Limit Voltage		21V
4	Maximum Charging Voltage		21.25V
5	Discharge Cut-off Voltage		12.5V
6	Charging Method		CC-CV	恒流/恒压
7	Charging Current		2000 mA
			5000 mA
8	Standard Discharge Current		2000mA
9	Maximum Continuous Discharge Current		9000mA
10	Maximum Pulse Discharge Current		30000mA	500ms
11	Operating Temperature	Charging	0°C~+45°C
		Discharging	-20°C~+60°C
12	Storage Temperature	Less than 1 Month	-20°C~+60°C
		Less than 3 Months	-20°C~+45°C
		Less than 1 Year	-20°C~+23°C
13	Storage Requirement		Recharge the battery every 4 months during storage.
14	Relative Humidity		65±10%
15	Battery Internal Resistance		≤ 100mΩ	AC internal resistance measured at 1 kHz after standard charging.
16	Battery Weight		1000g	About
17	Battery Dimensions	Length	161.50±0.5mm
		Width	73.50±0.4mm
		Thickness	56.00±0.30mm

High Capacity & Long Runtime: 18 V / 10 Ah with approximately 180 Wh of energy, providing continuous power for drive motors, cutting blades, navigation, and control systems to support extended mowing operation.

30 A Peak Power Output: Supports a maximum pulse discharge current of up to 30 A, meeting transient high-power demands during blade startup, hill climbing, heavy grass cutting, and rapid turning.

5 A Fast Charging: Supports charging currents up to 5 A with CC/CV charging, improving recharge efficiency and reducing downtime between mowing cycles.

Wide-Temperature Outdoor Operation: Supports discharge from −20°C to +60°C, ensuring reliable operation across seasonal temperature variations and outdoor lawn environments.
