Cleaning Robots&Robotic Lawn Mowers_FY014B-RBA

19.2 Ah High Capacity
25.2 V High-Voltage Platform
16 A Stable Output
−20°C to +60°C Wide-Temperature Discharge

联系我们

产品详情

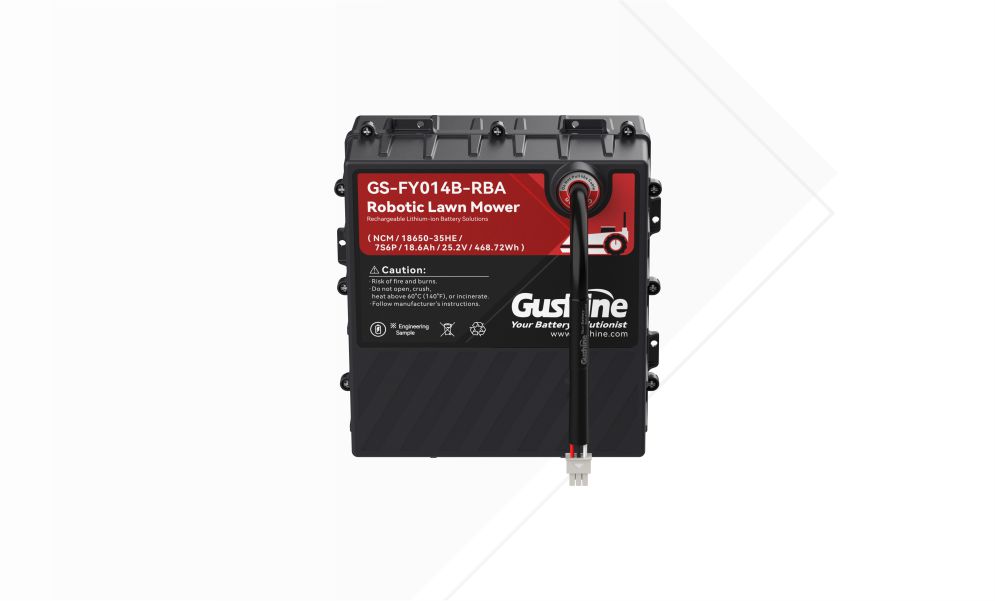

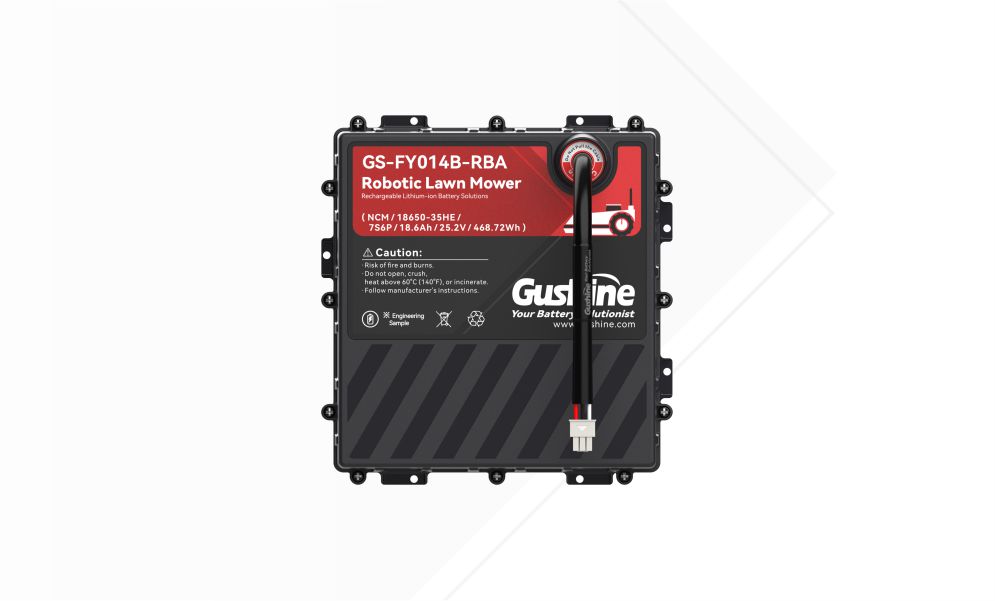

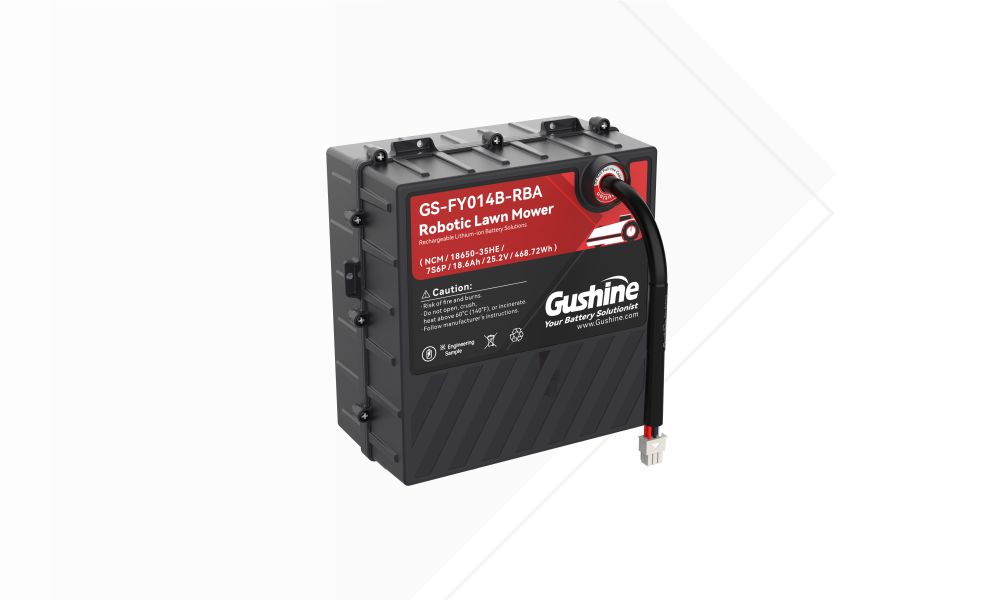

Cleaning Robots&Robotic Lawn Mowers_FY014B-RBA

The battery uses CC/CV charging, with a recommended charging current of 6 A and a maximum charging current of up to 9 A, balancing charging efficiency with battery service life. The recommended discharge current is 12 A, while the maximum discharge current reaches 16 A, meeting the power demands of robotic lawn mowers during blade startup, hill climbing, steering, and dense grass cutting. With a total pack internal resistance of ≤120 mΩ, the battery helps improve output stability and operating efficiency.

Product Specifications & Configuration
Battery Model:FY014B-RBA
Cell Type / Capacity: INR18650-32HE/3100mAh/3.6V/Li-Ion
Battery Configuration: The finished battery pack consists of 42 cells in a 7S6P configuration and a protection control circuit (PCM).

Basic Performance

No.	Item		Parameter	Remarks
1	Capacity		Typ. 19200mAh	0.2C Discharge
1	Capacity		Min. 18600mAh	0.2C Discharge
2	Nominal Voltage		25.2V
3	Charge Limit Voltage		29.4V
4	Maximum Charging Voltage		29.75V
5	End-of-Discharge Voltage		18.2V
6	Discharge Cut-off Voltage		17.5V
7	Charging Method		CC-CV
8	Recommended Charging Current		6000 mA
9	Maximum Charging Current		9000 mA
10	Recommended Discharge Current		12000 mA
11	Maximum Discharge Current		16000 mA
11	Operating Temperature	Charging	0°C~+10°C	Charge at 0.2C to 29.4 V
			+10°C~+20°C	Charge at 0.5C to 29.4 V
			+20°C~+45°C	Charge at 1.0C to 29.4 V
		Discharging	-20℃~-0℃	Discharge at 0.3C to 18.2 V
		Discharging	0℃~+60℃	Discharge at 1.0C to 18.2 V
12	Storage Temperature	Less than 1 Month	-20°C~+60°C
		Less than 3 Months	-20°C~+45°C
		Less than 1 Year	-20°C~+25°C
13	Relative Humidity		65±10%
14	Battery Internal Resistance		≤ 120mΩ	Measure the battery AC internal resistance at 1 kHz after standard charging.
15	Battery Weight		2700g (including potting compound)	About
16	Battery Dimensions	Length	146±0.5mm
		Width	154±0.5mm
		Thickness	146±0.5mm

产品特点

High Capacity & Long Runtime: 25.2 V / 19.2 Ah with approximately 484 Wh of typical energy, providing extended continuous power for drive, cutting deck, navigation, and control systems.

Stable Power Output: Supports a recommended discharge current of 12 A and a maximum discharge current of up to 16 A, meeting the power demands of blade startup, hill climbing, dense grass cutting, and steering.

Fast Charging: Supports a recommended charging current of 6 A and a maximum charging current of up to 9 A, improving recharge efficiency and reducing downtime.

Wide-Temperature Outdoor Operation: Supports discharge from −20°C to +60°C and charging from 0°C to +45°C, ensuring stable operation across different seasons and outdoor lawn environments.
