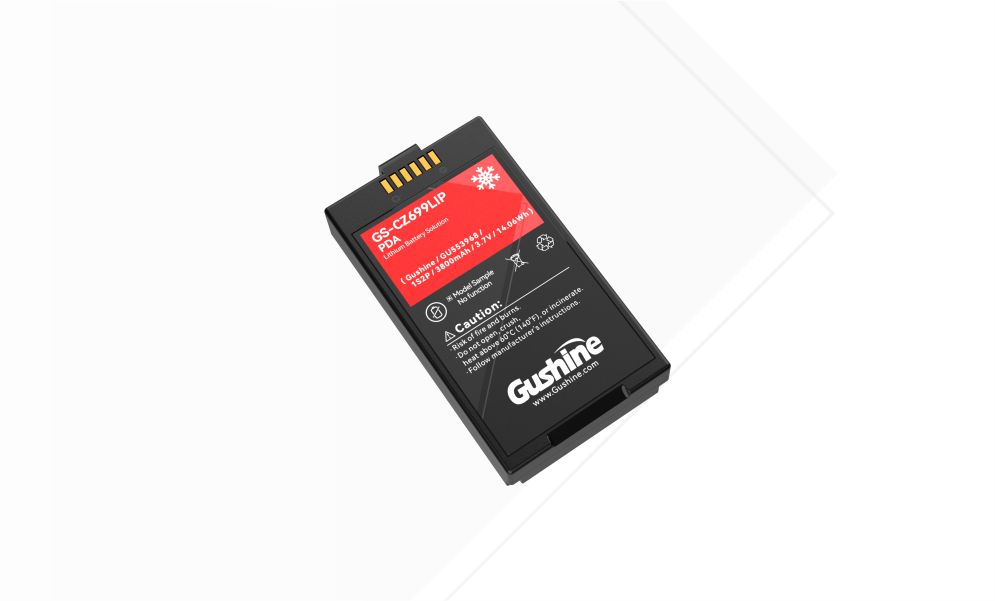

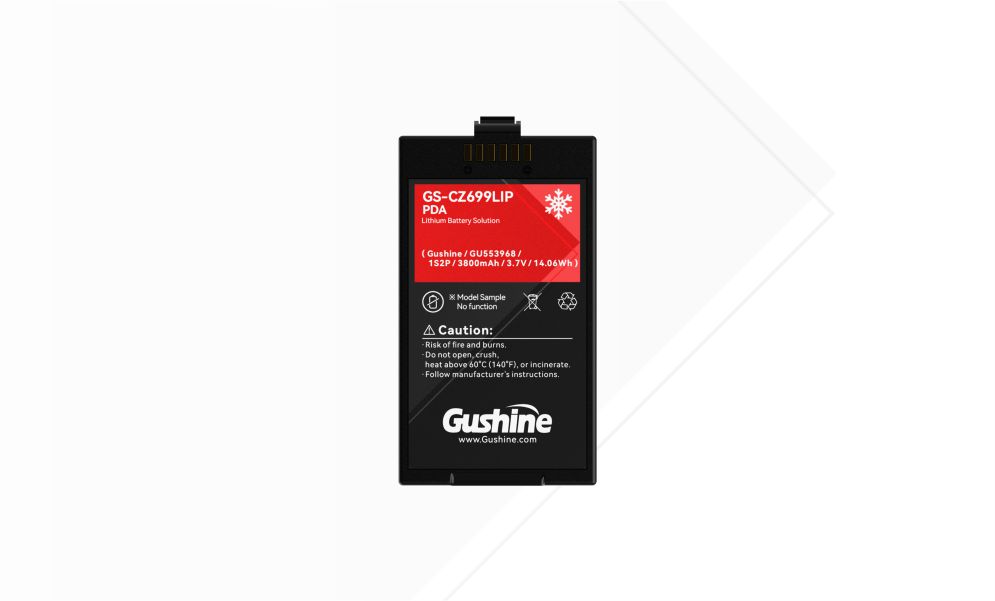

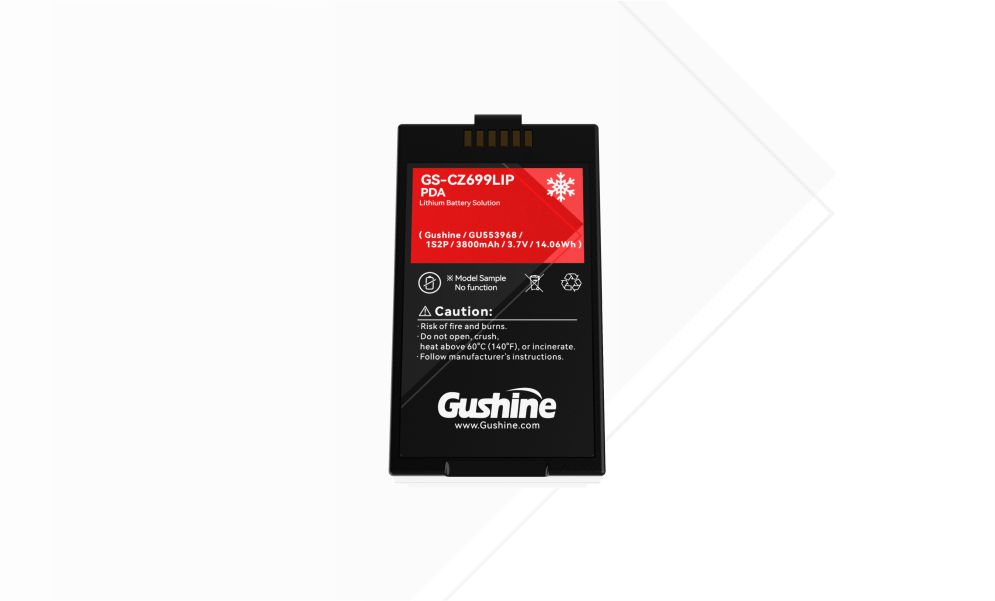

Handheld PDA_CZ699LIP
- Long Runtime Design
- Smart Battery Management
- High-Reliability Safety Protection
- Adaptability to Harsh Environments
The battery uses CC/CV charging, with a charging voltage of 4.2 V ± 0.05 V, a standard charging current of 760 mA, and a maximum charging current of up to 1.9 A. The standard discharge current is 1.9 A, providing reliable power for daily handheld terminal operation and intermittent high-power loads.The battery supports discharging from −20°C to +60°C and charging from 0°C to +45°C, making it suitable for a wide range of environments, including warehousing, logistics, retail, and outdoor mobile operations.
Product Specifications & Configuration
Battery Model: CZ699LIP
Cell Type / Capacity: Gushine GU553968/1900mAh
Battery Configuration: The battery pack consists of 2 cells in a 1S2P configuration and a protection control circuit (PCM).
Basic Performance
| No. | Item | Parameter | Remarks | |
| 1 | Capacity | 3800mAh | 0.2C Discharge | |
| 2 | Nominal Voltage | 3.7V | ||
| 3 | Charging Voltage | 4.2V±0.05V | ||
| 4 | Discharge Cut-off Voltage | 2.5V | ||
| 5 | Charging Method | CC-CV | ||
| 6 | Charging Current | 760mA | （0.2C） | |
| 1900mA | （0.5C） | |||
| 7 | Maximum Discharge Current | 1900 mA | （0.5C） | |
| 8 | Operating Temperature | Charging | 0°C~+45°C | |
| Discharging | -20°C~+60°C | |||
| 9 | Storage Temperature | Less than 1 Month | -20°C~+45°C | |
| Less than 3 Months | -20°C~+35°C | |||
| Less than 1 Year | -20°C~+20°C | |||
| 10 | Relative Humidity | 65±20% | ||
| 11 | Battery Internal Resistance | ≤ 100mΩ | Measured at 50% SOC, AC 1 kHz. | |
| 12 | Battery Weight | 90g | About | |
| 13 | Battery Dimensions | Length | 75±0.2mm | |
| Width | 42.5±0.2mm | |||
| Thickness | 75±0.2mm | |||
Long Runtime Design: 3.7 V / 3800 mAh capacity supports extended mobile operation for PDA barcode scanning, data collection, and wireless communication.
Slim & Compact: Uses a 1S2P lithium-polymer cell configuration with a total pack weight of approximately 90 g, balancing capacity and lightweight design for easy integration into handheld terminals.
Fast Charging: Supports charging currents up to 1.9 A with CC/CV charging to improve daily charging efficiency.
Stable Power Across Wide Temperatures: Supports discharge from −20°C to +60°C, making it suitable for warehousing, logistics, retail, outdoor, and other operating environments.
