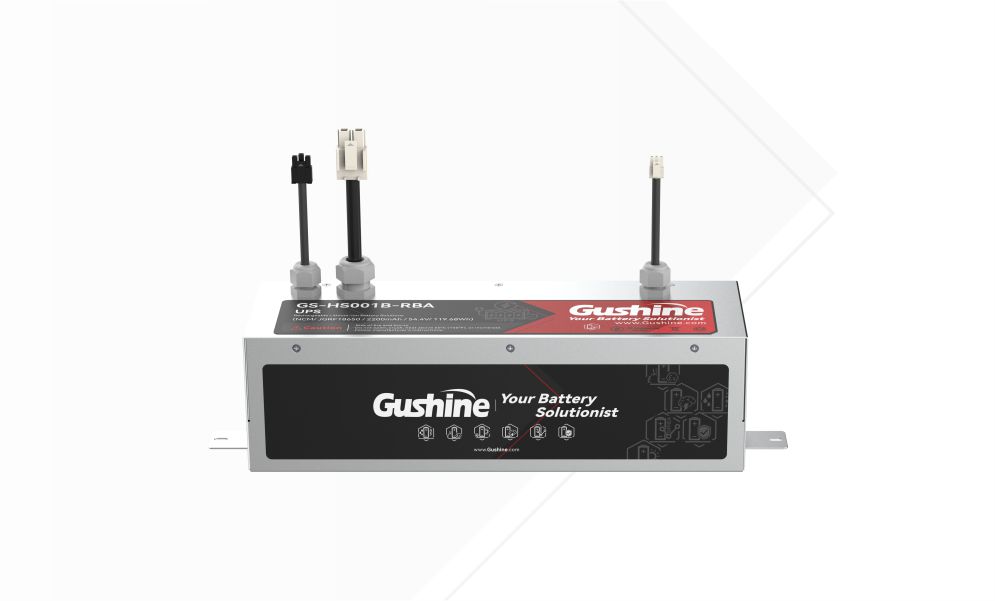

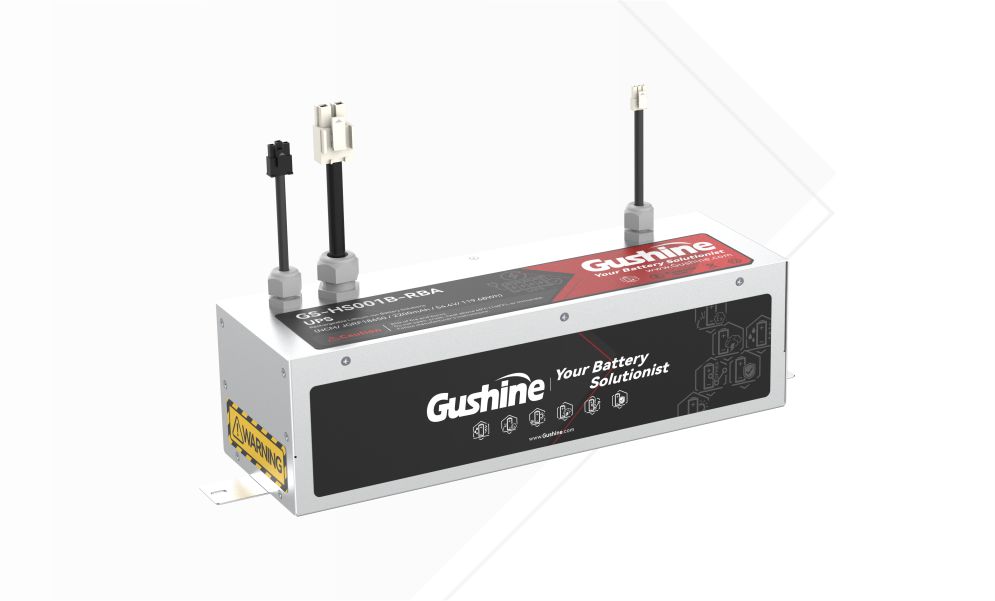

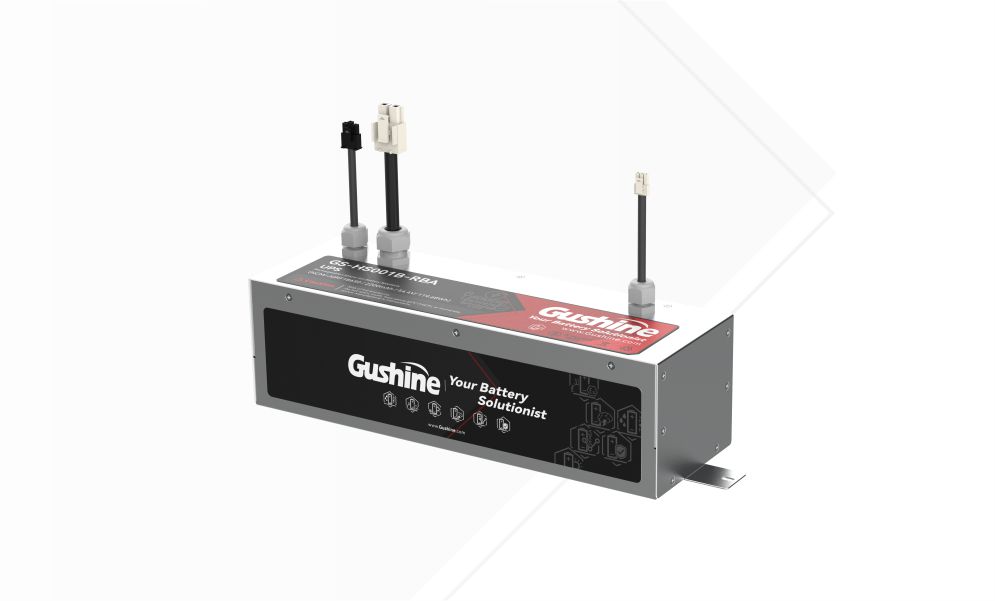

Other Backup Power Supplies_HS001B-RBA
- 54.4 V High-Voltage Platform
- Approx. 120 Wh Backup Energy
- 44 A High-Rate Output
- −20°C to +60°C Wide-Temperature Discharge
| No. | Item | Parameter | Remarks | |
| 1 | Capacity | Typ.2200mAh | 0.2C Discharge | |
| Min.2100mAh | ||||
| 2 | Nominal Voltage | 54.4V | ||
| 3 | Charge Cut-off Voltage | 63.75V | ||
| 4 | Discharge Cut-off Voltage | 42.5V | ||
| 5 | Charging Method | CC-CV | ||
| 6 | Standard Charging Current | 1100 mA | 0.5C | |
| 7 | Standard Discharge Current | 1100 mA | 0.5C | |
| 8 | Maximum Charging Current | 2200mA | ||
| 9 | Maximum Discharge Current | 44000mA | 2000W&2.5Mins 1800W&3.0Mins |
|
| 10 | Operating Temperature | Charging | 0°C~+45°C | |
| Discharging | -20°C~+60°C | |||
| 11 | Battery Internal Resistance | ≤ 340mΩ | ||
| 12 | Battery Weight | 3500g | About | |
| 13 | Battery Dimensions | Length | 340±2mm | |
| Width | 110±2mm | |||
| Thickness | 100±2mm | |||
High-Voltage Platform: Uses a 17S2P configuration with a nominal voltage of 54.4 V, suitable for high-voltage applications such as industrial equipment, communication terminals, and emergency power systems.
High-Rate Discharge Capability: Supports a maximum discharge current of up to 44 A (20C), meeting the power demands of equipment startup, power-failure switching, and short-duration high-load operation.
Stable Backup Power: Provides approximately 120 Wh of energy reserve, delivering continuous and stable backup power to critical loads when the main power supply is abnormal or interrupted.
Wide-Temperature Operation: Supports discharge from −20°C to +60°C and charging from 0°C to +45°C, making it suitable for a wide range of industrial and communication equipment operating environments.
