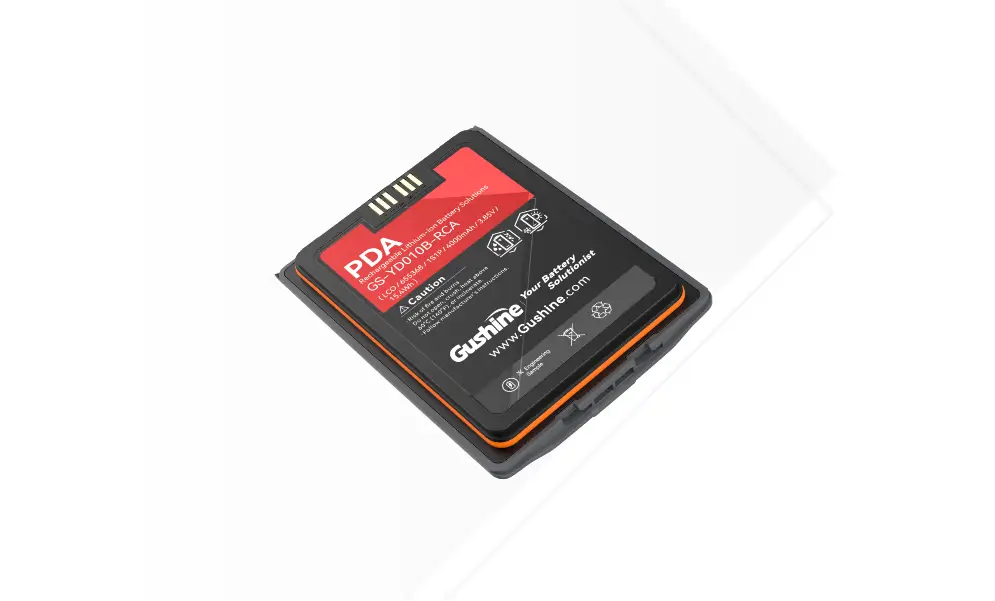

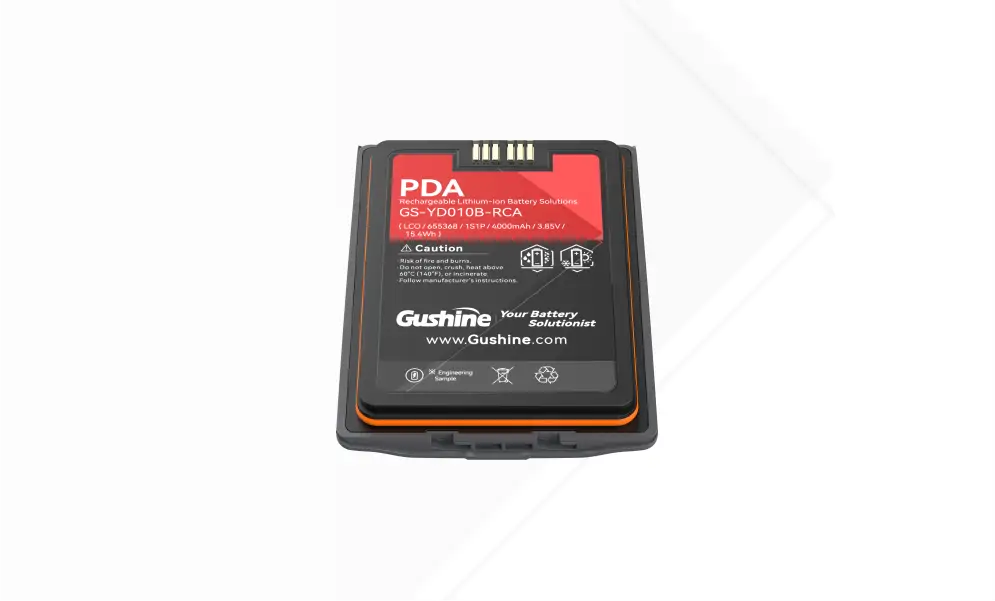

PDA Lithium Battery Pack_YD010B
- IP65 Water & Dust Protection
- Slim & High Energy Density
- Stable Continuous Power
- Smart Protection Board
- Multi-Layer Safety Protection
Smart PDA battery packs integrate high-reliability lithium cells, a smart BMS, and communication management functions to enable accurate SOC monitoring, battery status identification, multi-layer safety protection, and stable power output, meeting the long-duration and high-frequency usage demands of PDA terminals in warehousing, logistics, retail, and other industries.
Product Specifications & Configuration
Battery Model: YD010B-RBA
Cell Type / Capacity:Li-Po/ 655368
Battery Configuration: The finished battery pack consists of a 1S1P cell configuration and a protection control circuit (PCM).
Basic Performance
| No. | Item | Parameter | Remarks | |
| 1 | Capacity | Typ.4100mAh | 0.2C Discharge | |
| Min.4000mAh | ||||
| 2 | Nominal Voltage | 3.85V | ||
| 3 | Charge Limit Voltage | 4.4V | ||
| 4 | Maximum Charging Voltage | 4.4V | ||
| 5 | Discharge Cut-off Voltage | 2.5V | ||
| 6 |
End-of-Discharge Voltage |
3.0V | ||
| 7 | Charging Method | CC-CV | ||
| 8 | Charging Current | Standard Charging Current | 800mA (0.2C) | |
| Maximum Charging Current | 2000mA (0.5C) | |||
| 9 | Standard Discharge Current | 2000mA (0.5C) | ||
| 10 | Maximum Discharge Current | 4000mA (1.0C) | ||
| 11 | Operating Temperature | Charging | 0°C≤T≤10°C | 0.2C max CC to 4.4V，CV to 0.02C |
| 15°C<T≤45°C | 0.5C max CC to 4.4V，CV to 0.02C | |||
| 45°C<T≤60°C | 0.5C max CC to 4.1V，CV to 0.02C | |||
| Discharging | -20°C≤T≤0°C | 0.2C max≥3.0V | ||
| 0C<T≤60°C | 1.0Cmax≥3.0V | |||
| 12 | Storage Temperature | Within 3 Months | 20°C~+45°C | Capacity Recovery ≥ 80% |
| Within 6 Months | -20°C~+35°C | |||
| 13 | Relative Humidity | 65+20% RH | ||
| 14 | Cell Internal Resistance | ≤50m Ω | AC internal resistance measured at 1 kHz after standard charging. | |
| 15 | Battery Internal Resistance | ≤120m Ω | ||
| 16 | Battery Weight | 77g | About | |
| 17 | Battery Dimensions | Thickness | 11.17±0.2mm | |
| Width | 65.22±0.2mm | |||
| Length | 85.47±0.2mm | |||
Slim & High Energy Density: Li-polymer cells enable more flexible size and structural designs, balancing lightweight construction with long runtime in limited space.
Stable Continuous Power: Provides stable output for high-frequency PDA operations such as barcode scanning, communication, and data processing, ensuring continuous terminal operation.
Smart BMS Management: Supports SOC monitoring, battery status management, and ID/communication functions to improve battery level accuracy and system compatibility.
Multi-Layer Safety Protection: Integrates overcharge, over-discharge, overcurrent, short-circuit, and over-temperature protection to enhance safety and reliability under frequent charge and discharge cycles.
