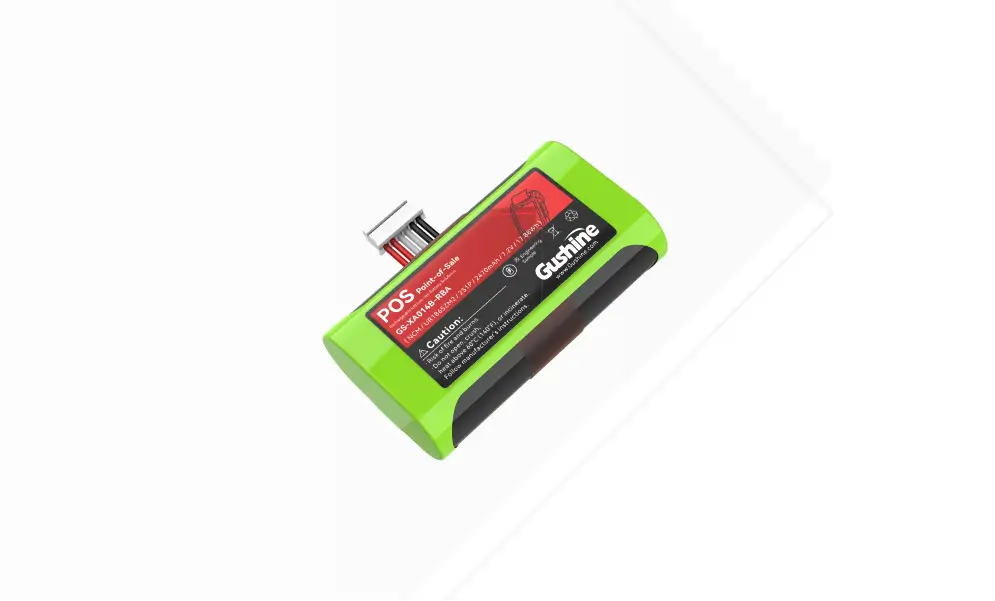

POS Lithium Battery Pack_XA014B
- Long Runtime & High Energy
- Stable High-Power Output
- ID Authentication & Encryption
- Multi-Layer Safety Protection
Product Specifications & Configuration
Battery Model: XA014B-SBA
Cell Type / Capacity: NCM / 18650 / 2470mAh
Battery Configuration: The finished battery pack consists of a 2S1P cell configuration and a protection control circuit (PCM).
| No. | Item | Parameter | Remarks | |
| 1 | Capacity | Typ. 2550mAh | 0.2C Discharge | |
| Min. 2470mAh | ||||
| 2 | Nominal Voltage | 7.2V | ||
| 3 | Charge Cut-off Voltage | 8.4V | ||
| 4 | Discharge Cut-off Voltage | 5.8V | ||
| 5 | Charging Method | CC-CV | CC/CV | |
| 6 | Charging Current | 618 mA | ||
| 1235 mA | ||||
| 8 | Discharge Current | 494 mA | ||
| 2470 mA | ||||
| 8 | Maximum Discharge Current | 5000 mA | ||
| 9 | Maximum Pulse Discharge Current | 6000 mA | 10ms | |
| 10 | Operating Temperature | Charging | 0°C~+45°C | |
| Discharging | -20°C~+60°C | |||
| 11 | Storage Temperature | Less than 1 Month | -20°C~+50°C | |
| Less than 3 Months | -20°C~+40°C | |||
| Less than 1 Year | -20°C~+20°C | |||
| 12 | Storage Requirement | Recharge the battery every 4 months during storage. | ||
| 13 | Relative Humidity | 65±20% | ||
| 14 | Battery Internal Resistance | ≤ 140mΩ | Measure the battery AC internal resistance at 1 kHz after standard charging. | |
| 15 | Battery Weight | 102g | About | |
| 16 | Battery Dimensions | Length | Max. 67mm | |
| Width | Max. 37.8mm | |||
| Thickness | Max. 21.5mm | |||
| Cable Length | 14+1/-2mm | |||
Long Runtime & High Energy Density: Balances capacity and lightweight design within a compact space to support extended operation for payment, communication, and mobile checkout applications.
Stable High-Power Output: Optimized for transient high-power loads such as thermal printing and wireless communication, reducing voltage drop and unexpected shutdowns.
ID Recognition & Authentication: Supports ID resistor, ID chip, or encryption chip solutions for battery identification, compatibility authentication, and anti-counterfeiting management, improving system compatibility and security.
Multi-Layer Safety Protection: Integrates overcharge, over-discharge, overcurrent, short-circuit, and over-temperature protection to ensure long-term stable operation of financial POS terminals.
