The battery uses CC/CV charging, with a recommended charging current of 2.5 A and a maximum charging current of up to 4 A, balancing charging efficiency with stable battery operation. The recommended discharge current is 2.5 A, with a maximum continuous discharge current of 5 A and a maximum pulse discharge current of 12 A, meeting transient power demands during suction motor startup, roller brush load changes, obstacle crossing, and carpet boost operation.

Product Specifications & Configuration

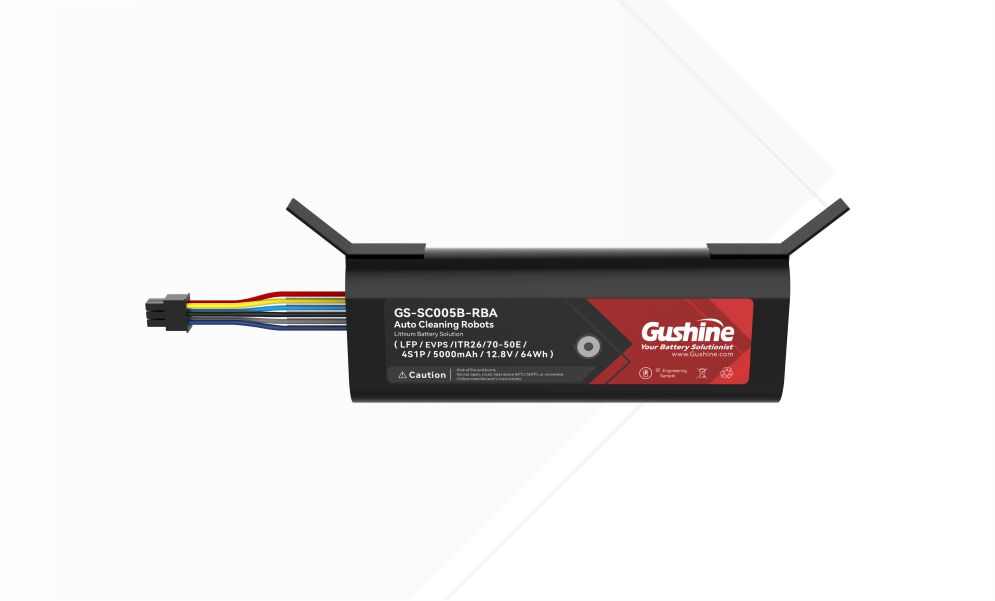

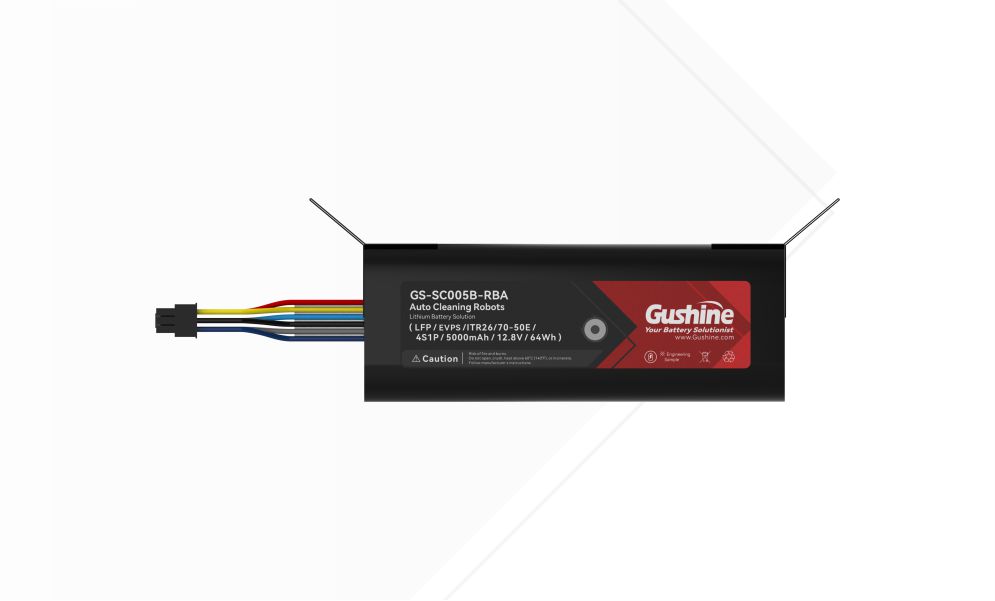

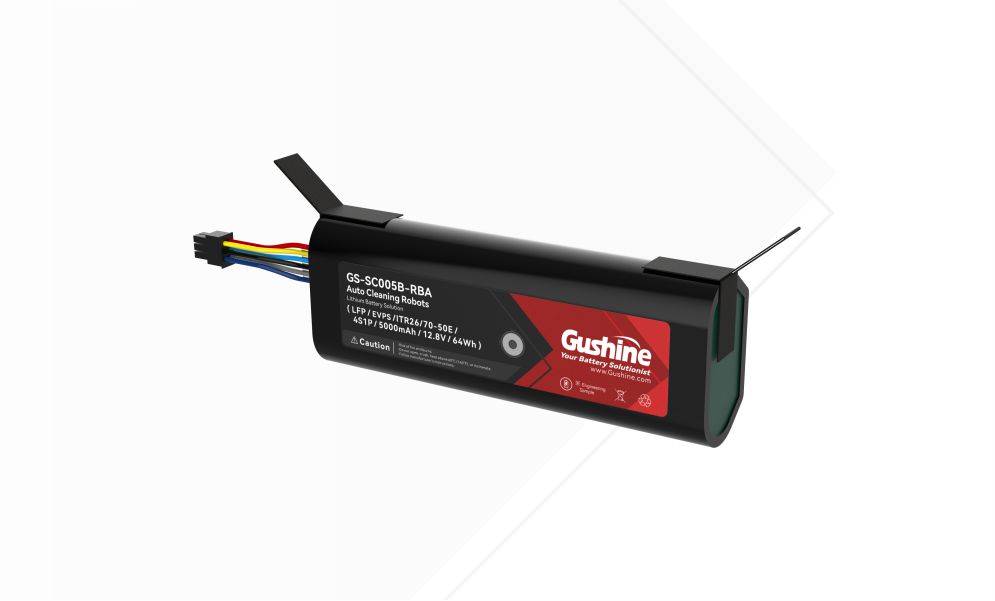

Battery Model: SC005B-RBB
Cell Type / Capacity: evps/ITR26/70-50E(R6)/5000mAh/3.2V
Battery Configuration: The finished battery pack consists of 4 cells in a 4S1P configuration and a protection control circuit (PCM).

Basic Performance

No.	Item		Parameter	Remarks
1	Capacity		Typ.5000mAh	0.2C Discharge
			Min.4900mAh
2	Nominal Voltage		12.8V
3	Charge Limit Voltage		14V
4	Maximum Charging Voltage		14.4V
5	End-of-Discharge Voltage		10.6V
6	Charging Method		CC-CV
7	Recommended Charging Current		2500mA
8	Maximum Charging Current		4000mA
9	Recommended Discharge Current		2500mA
10	Maximum Continuous Discharge Current		5000mA
11	Maximum Pulse Discharge Current		12000mA	15s
12	Operating Temperature	Charging	0°C~+55°C
		Discharging	-20°C~+60°C
13	Storage Temperature	Less than 3 Months	-20°C~+45°C	Store at 40%–60% SOC
		Less than 1 Year	-20°C~+25°C
14	Storage Humidity		65±20%
15	Battery Internal Resistance		≤ 150mΩ	AC internal resistance measured at 1 kHz after standard charging.
16	Battery Weight		500g	About
17	Battery Dimensions	Length	MAX.146mm
		Width	MAX.54mm
		Thickness	MAX.30mm

High Capacity & Long Runtime: 12.8 V / 5000 mAh with approximately 64 Wh of energy, providing continuous power for drive, suction, roller brush, and navigation systems to support extended cleaning operation.

High-Power Peak Output: Supports a maximum continuous discharge current of 5 A and a maximum pulse discharge current of up to 12 A, meeting high-load demands during motor startup, obstacle crossing, and carpet boost operation.

Fast Charging: Supports a recommended charging current of 2.5 A and a maximum charging current of up to 4 A, improving recharge efficiency after automatic docking and reducing downtime.

Wide-Temperature Operation: Supports discharge from −20°C to +60°C and charging from 0°C to +55°C, ensuring stable operation across a wide range of home and commercial cleaning environments.
