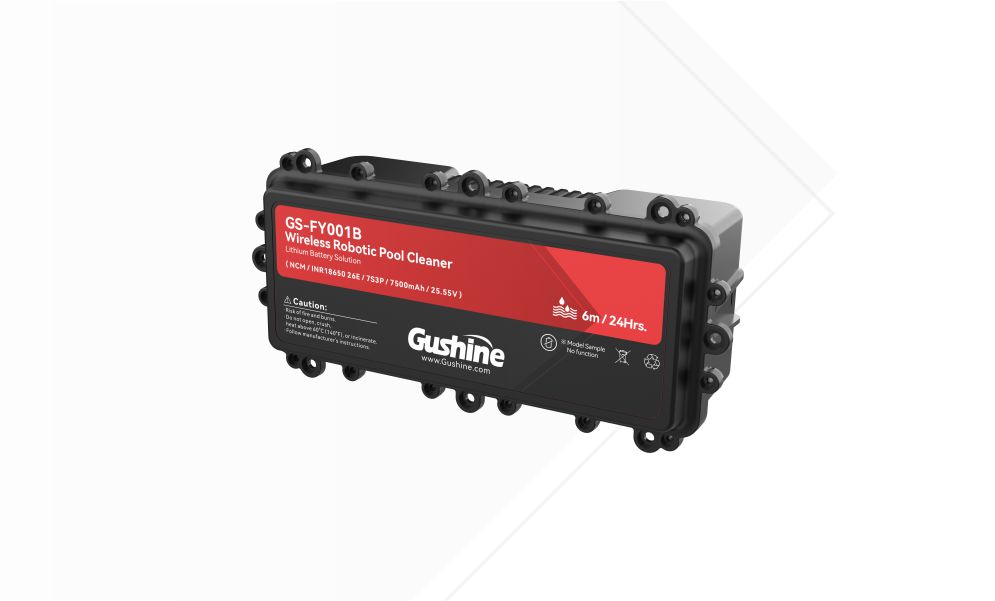

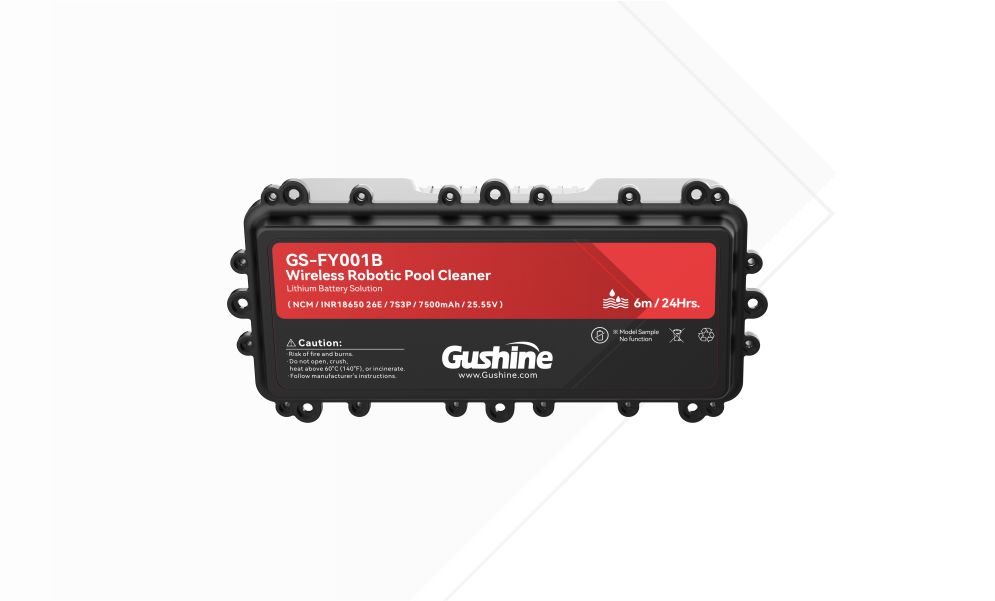

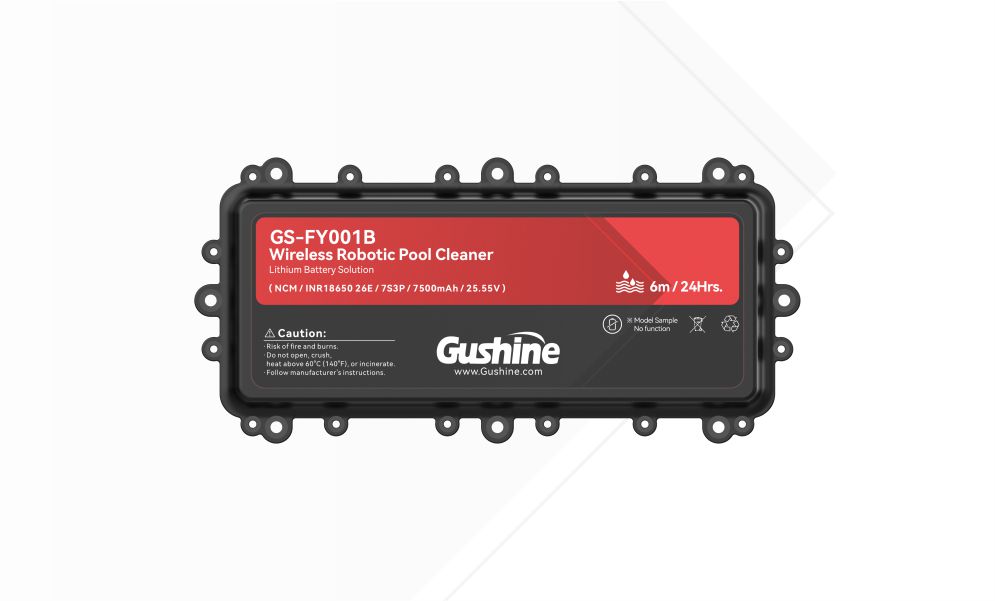

Robotic Pool Cleaner_FY001

Designed for the long-duration underwater operation of robotic pool cleaners, providing extended runtime, stable power output, and reliable safety protection to support continuous cleaning in demanding underwater environments.

联系我们

产品详情

Robotic Pool Cleaner_FY001

Product Specifications & Configuration
Battery Model: FY001B-RBA
Cell Type / Capacity: INR18650 26E/2600mAh
Battery Configuration: The finished battery pack consists of 21 cells in a 7S3P configuration and a protection control circuit (PCM).

Basic Performance

No.	Item		Parameter	Remarks
1	Capacity		Typ.7800mAh
1	Capacity		Min.7500mAh
2	Nominal Voltage		25.55V
3	Charge Limit Voltage		29.4V
4	Maximum Charging Voltage		29.45 V
5	Discharge Cut-off Voltage		19.25V
6	Charging Method		CC-CV
7	Charging Current		1560mA	（0.2C)
7	Charging Current		3900mA	（0.5C)
8	Discharge Current		3900 mA	（0.5 C）
9	Maximum Discharge Current		15000mA
10	Storage Temperature	Less than 1 Month	-20°C ~ +55°C
		Less than 3 Months	-20°C ~ +45°C
		Less than 1 Year	-20℃~+25℃
11	Storage Requirement		Recharge the battery every 4 months during storage.
12	Relative Humidity		65±10%
13	Battery Internal Resistance		≤120mΩ	Measure the battery AC internal resistance at 1 kHz after standard charging.
14	Battery Weight		1800g	About
15	Battery Dimensions	Length	218.20±0.5mm
		Width	103.20±0.4mm
		Thickness	76.00±0.3mm

产品特点

High Energy Density: High-performance lithium cells balance extended runtime with lightweight system design.

Stable Power Output: Supports continuous high-current discharge to provide stable power for drive, suction, and cleaning systems.

Smart BMS Management: Integrates overcharge, over-discharge, overcurrent, short-circuit, and temperature protection to enhance operational safety.

High-Level Protection: Features sealing, moisture resistance, and corrosion-resistant design for underwater applications, improving long-term battery pack reliability.

Communication & Status Monitoring: Supports battery level, temperature, and operating status monitoring and communication for intelligent system management.
