The battery uses CC/CV charging with a charge limit voltage of 25.2 V, a standard charging current of 1.24 A, and a maximum charging current of up to 3.1 A, balancing stable charging with fast recharge capability. The standard discharge current is 3.1 A, while the maximum discharge current reaches 10 A, meeting the higher power demands during vacuum cleaner startup, high-suction operation, and power-level switching.

Product Specifications & Configuration

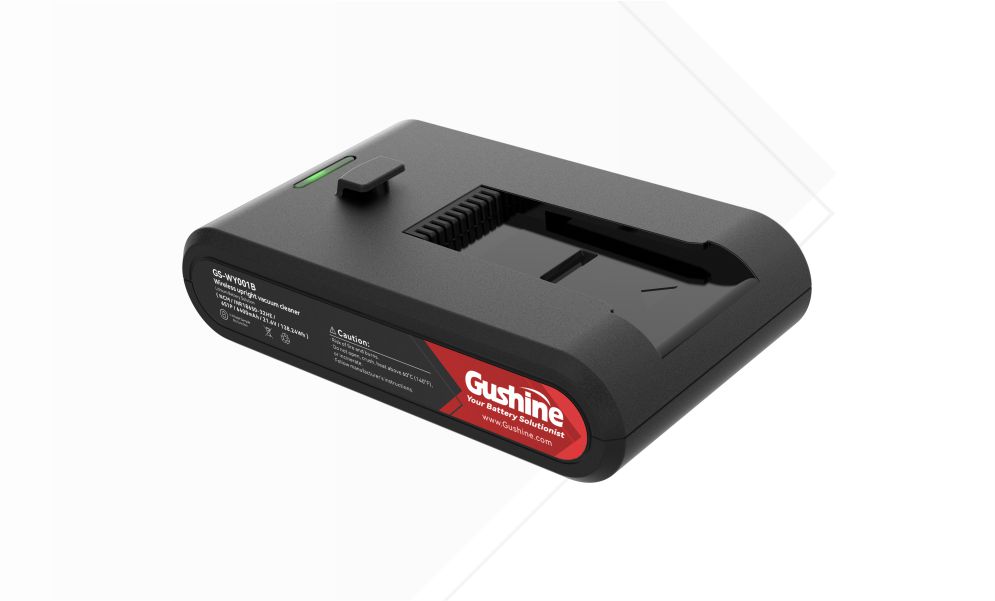

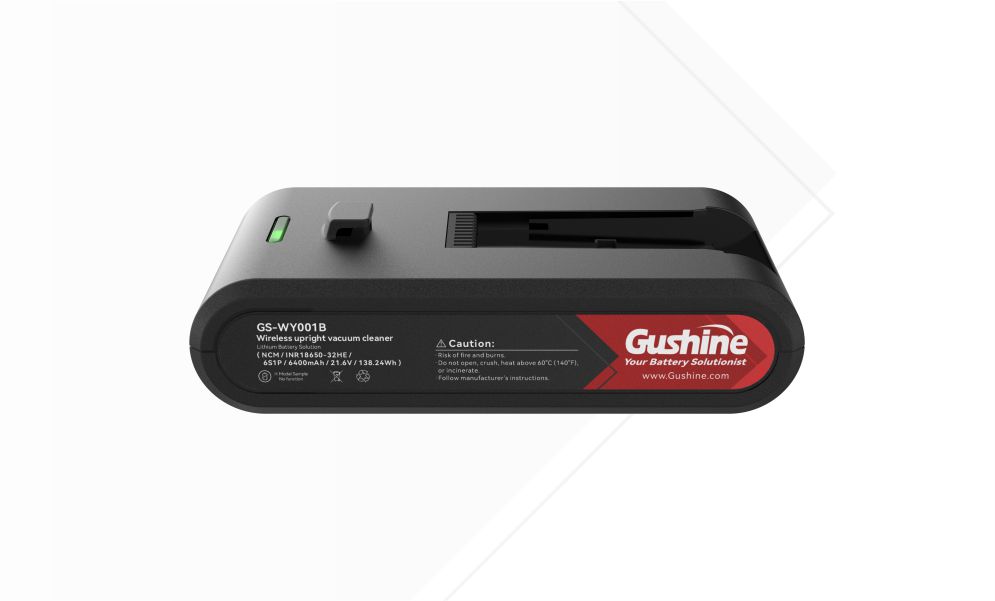

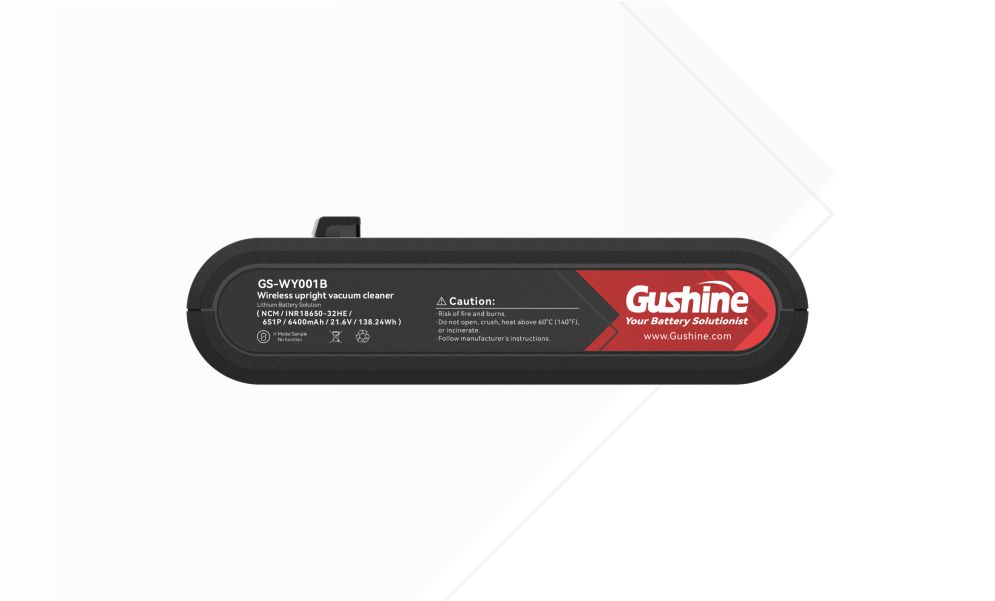

Battery Model: WY001B-RBA
Cell Type / Capacity: INR 18650-32HE/3200mAh
Battery Configuration: The finished battery pack consists of 12 cells in a 6S2P configuration and a protection control circuit (PCM).

Basic Performance

No.	Item		Parameter	Remarks
1	Capacity		Typ.6400mAh	0.2C Discharge
			Min.6100mAh
2	Nominal Voltage		21.6V
3	Charge Limit Voltage		25.2V
4	Maximum Charging Voltage		25.25V
5	Discharge Cut-off Voltage		15V
6	Charging Method		CC-CV
7	Charging Current		1240mA	（0.2C）
			3100mA	（0.5C）
8	Standard Discharge Current		3100mA	（0.5C）
9	Maximum Discharge Current		10000 mA	<10s
10	Operating Temperature	Charging	0°C~+10°C	Charge at 0.2C to 25.2 V
			+10°C~+20°C	Charge at 0.5C to 25.2 V
			+20°C~+45°C	Charge at 0.5C to 25.2 V
		Discharging	-20℃~-0℃	Discharge at 0.5C to 15.0 V
			0℃~+60℃	Discharge at 1.0C to 15.0 V
11	Storage Temperature	Less than 1 Month	-20°C~+60°C	Capacity Recovery ≥ 90%
		Less than 3 Months	-20°C~+45°C
		Less than 1 Year	-20°C~+25°C
12	Storage Requirement		Recharge the battery every 4 months during storage.
13	Relative Humidity		65±10%
14	Battery Internal Resistance		≤ 150mΩ	Measure the battery AC internal resistance at 1 kHz after standard charging.
15	Battery Weight		600g	About
16	Battery Dimensions	Length	MAX.230.0mm
		Width	MAX.70.0mm
		Thickness	MAX.20.0mm
