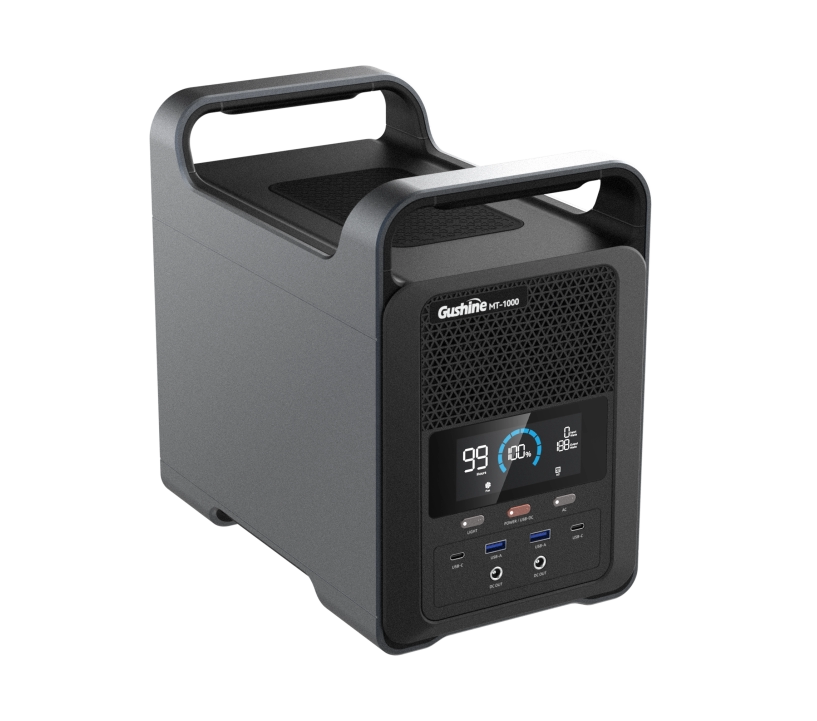

MT-1000 Portable Power Station

With its large capacity, high power output, and multiple ports, the MT-1000 covers most of your everyday power needs. Its stable high-power output ensures efficient device operation, while fast-charging ports improve the runtime of electronic devices. Designed for multiple scenarios, it provides reliable power when you need it most.

● 100V-120V / 1000W

Dual AC Output Ports

● PD 100W

Smart Fast Charging

● 1037Wh 48Ah

High Power, Long Runtime

● Pure Sine Wave Output

High-Quality Power

100V-120V
1000W AC Output

1037Wh
48Ah

PD 100W
Smart Fast Charging

Pure Sine Wave
AC Output

Specification

Model	MT-1000
Size	265255170mm
Operating Temperature	Charge: 0 to+45℃ Discharge: -20 to+60℃
Storage Temperature	-20 to 45℃, ＜70%RH（within one year）
Battery Cell	21700 Lithium-ion Battery Cell
Capacity	1037Wh, 48Ah@3.6V
Cycle Life	≥500 cycles
Input	AC Input: 85V to 120V, Maximum 450W support
	Solar Panel (Optional): Maximum 120W (under ideal weather conditions)
Output	AC Output(x2): 100V-120V, 50Hz / 60Hz, Pure Sine Wave Output, Total output power 1000W, Peak output 1050W
	USB-A QC 3.0 Fast Charging Output (x2): DC 5V/3A; 9V/2A; 12V/1.5A; Maximum 18W output per port
	Type-C Output (x2): DC 5V/3A; 9V/3A; 12V/3A; 20V/5A; Maximum 100W output per port
	DC 5521 Output(x2): 12V/6A, Total maximum output 120W
	LED Lighting: Regular brightness 3W, Maximum 5W output

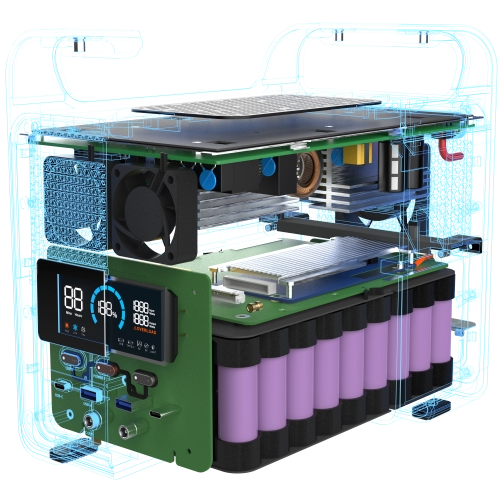

Battery Management System (BMS)

The BMS oversees the battery pack's status, performance, and safety. It continuously monitors parameters like voltage, temperature, and charge/discharge cycles, ensuring the MT-1000 operates with optimal battery health and efficiency.

Real-time Monitoring:
Tracks battery voltage, current, temperature, SOC (State of Charge), and SOH (State of Health) in real time.

Battery Balancing:
Active or passive balancing technology adjusts the voltage of individual battery cells to ensure voltage consistency across the pack.

Comprehensive Protection:
Includes multiple protection mechanisms such as overcharge, over-discharge, overcurrent, short-circuit, and over-temperature to ensure battery safety.

Data Acquisition & Communication:
Facilitates real-time data exchange through communication protocols, ensuring seamless integration and coordination between the system components.

MT-1000 Portable Power Station

Fuel Your Work, Power Your Outdoors

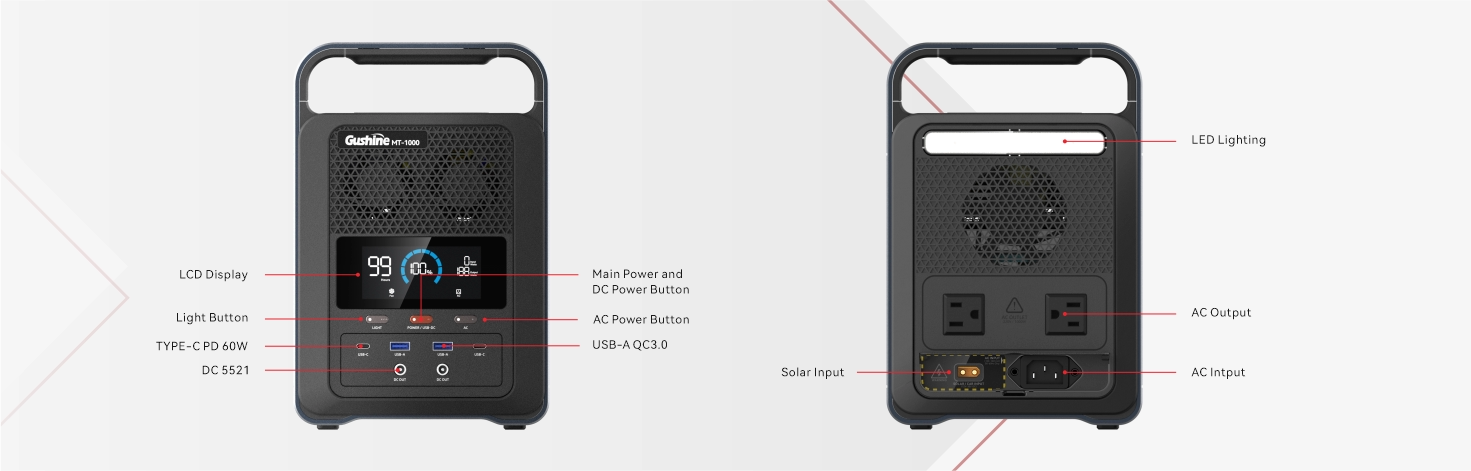

Interfaces
