MT-400 Portable Power Station

The MT-400 is a versatile portable energy storage system featuring pure sine wave AC output and DC fast charging. With a 368 Wh capacity, it can power up to 8 devices at once, making it ideal for camping, hiking, and drone photography. Its rugged aviation-grade aluminum casing ensures durability and reliability. The MT-400 is your ultimate power solution for both outdoor activities and emergencies.

● AC 100V-120V

500W Sine Wave Output

● PD 60W

Bi-directional Smart Fast Charging

● 368 Wh

Extended Battery Life

Brochure

100V/110V
100W
AC Output

90Wh
6.2Ah

PD Two-way
Fast Charging

Pure Sine Wave

Specification

Model	MT-400
Size	224184214mm
Operating Temperature	Charge: 0 to+45℃ Discharge: -20 to+60℃
Storage Temperature	-20 to 45℃,＜70%RH (within one year)
Battery Cell	18650 Lithium-ion Battery Cell
Capacity	368Wh, 25Ah@3.6V
Cycle Life	≥500 cycles
Input	DC (x2): 10V-20V, Maximum total input 100W
	Type-C (x2): Maximum 20V, 60W input per port
	Solar Panel (Optional): Maximum 100W (under ideal weather conditions)
Output	AC (x2): 110V-120V, 50Hz/60Hz, Pure Sine Wave Output, Total output power 500W, Peak output 550W
	USB-A (x2): DC 5V/2.4A, Maximum 12W output per port
	USB-A QC 3.0 Fast Charging (x2): DC 5V/3A; 9V/2A; 12V/1.5A; Maximum 18W output per port
	Type-C (x2): DC 5V/3A; 9V/2A; 12V/3A; 15V/3A; 20V/3A; Maximum 60W output per port

Battery Management System（BMS）

The BMS oversees the battery pack's status, performance, and safety. It continuously monitors parameters like voltage, temperature, and charge/discharge cycles, ensuring the MT-400 operates with optimal battery health and efficiency.

Real-time Monitoring:
Tracks battery voltage, current, temperature, SOC (State of Charge), and SOH (State of Health) in real time.

Battery Balancing:
Active or passive balancing technology adjusts the voltage of individual battery cells to ensure voltage consistency across the pack.

Comprehensive Protection:
Includes multiple protection mechanisms such as overcharge, over-discharge, overcurrent, short-circuit, and over-temperature to ensure battery safety.

Data Acquisition & Communication:
Facilitates real-time data exchange through communication protocols, ensuring seamless integration and coordination between the system components.

MT-400 Portable Power Station

Easy to Carry，Fully Versatile

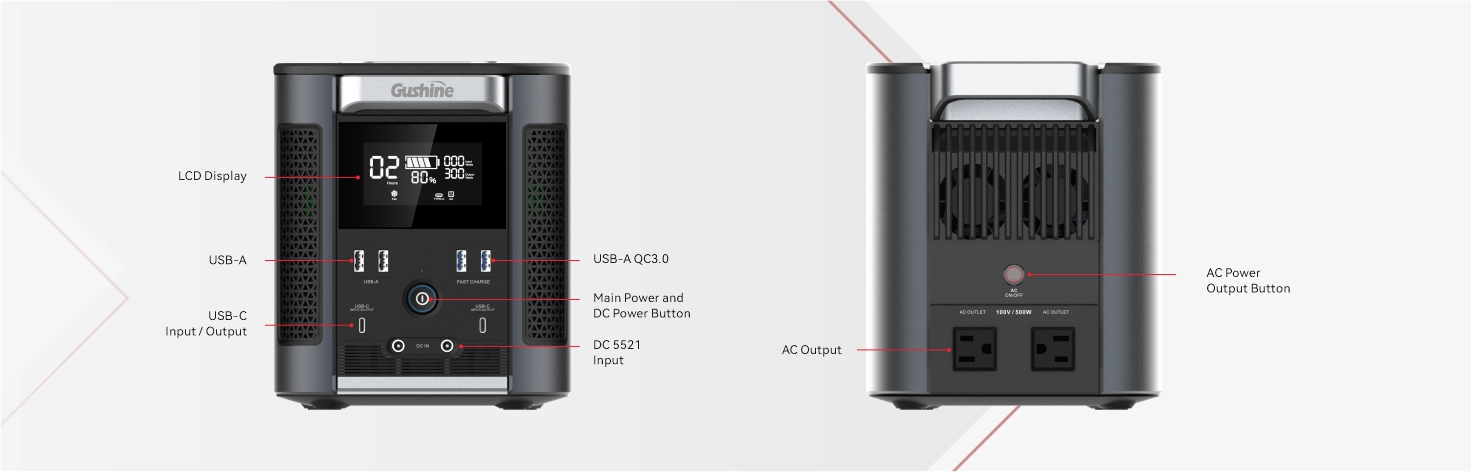

Interfaces
